Fieldking FKAT2WT-E-5Ton Tipping Trailer: Specifications, Features, Applications & Buying Guide
Yaani Media
Explore the Fieldking FKAT2WT-E 5-ton tipping trailer, including its specifications, key features, agricultural and commercial applications, hydraulic tipping system, load capacity, tractor compatibility, and important factors to consider before buying.
Fieldking FKAT2WT-E-5Ton Tipping Trailer: Specifications, Features, Applications & Buying Guide

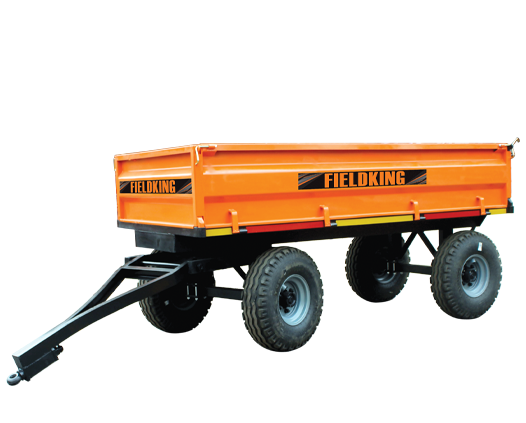

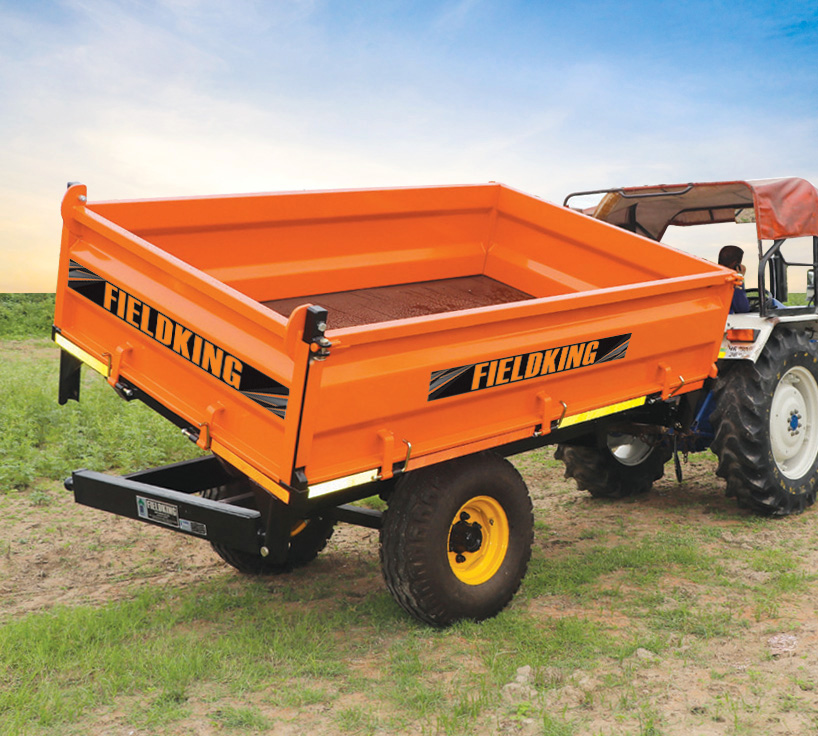

The Fieldking FKAT2WT-E-5 trailer is a heavy-duty tipping attachment capable of towing loads up to 5 tons. It features a high-grade hub, axle, bearings, and tipping mechanism for more durability. It is designed with convenience in mind, with openable sides and wide tubeless tires.
The FieldKing FKAT2WT-E-5 trailer specifications include simple tipping for loading and unloading materials such as farm produce. The two-wheeler trailer is compatible with tractors with 50 to 70 HP. Read through to see why the Fieldking is your little workhorse on the farm and why you should get one from Agricom.
What Is the Fieldking FKAT2WT-E-5 Trailer?
The 5-ton tipping trailer is a heavy-duty two-wheeler. It is capable of efficiently transporting farm produce and materials across different terrains. It comes with openable sides and wide tubeless tyres for improved handling and efficiency. It is compatible with tractors with 50 to 70 HP, with a maximum loading capacity of up to 5 tons. Whether for harvesting or general farm work, the tipping trailer suits Tanzanian farmers seeking durability, reliability, and performance.
Read about Agricom to learn more about us as a trusted supplier of farm equipment and tractors for farmers.
Key Features of the Fieldking FKAT2WT-E-5 Trailer
The agricultural tipping trailer helps Tanzanian farmers cut time spent on complex farming tasks with ease and convenience. The trailer comes with easy attachment and mounting for easy transportation. Some interesting features about the trailer are the following:
● Capable of handling a maximum loading capacity of up to 5 tons.
● A high-grade hub, axle, bearings, and tipping mechanism for long life.
● Wide tubeless tyres to support heavy loads.
● Compatible with tractors with 50 to 70 HP for optimal towing and loading stability.
● Flexible trailer for easy loading and unloading of farm produce.
Technical Specifications of the Fieldking FKAT2WT-E-5 Trailer
The table below gives the Fieldking FKAT2WT-E-5T specifications, from model to approximate weight. Let’s take a look at the detailed trailer description to clarify the technical details and ensure farmers get value for every dollar spent on the product.
Specification | Details |
Model | Fieldking FKAT2WT-E-5 |
Trailer type | Heavy-duty 2-wheel tipping agricultural trailer |
Capacity | 5 tons |
Recommended tractor HP | 50–70 HP |
Overall dimensions (L × W × H) | 3,048 × 1,828 × 610 mm |
Floor thickness | 4 mm |
Side wall thickness | 3 mm corrugated steel side walls |
Axle size | 75 mm |
Hitch diameter | 50 mm |
Tyres | 7.50 × 16, 9.00 × 16, 12.5/80-15.3 |
Approximate weight | 1,180 kg |
Want detailed information on the Fieldking FKAT2WT-E-5 trailer, including financing options and warranty details? Contact Agricom for first-hand information.
Tractors Compatible with the Fieldking FKAT2WT-E-5 Trailer
The FieldKing FKAT2WT-E-5 is designed for a 50-70 HP tractor-trailer. This power range provides sufficient pulling capacity and stability. It makes it easier to haul up to 5 tons under normal field and farm road conditions. Tractors compatible with the trailer include the following:
● John Deere 5050D (50 HP)
● John Deere 5065e (65 HP)
● Massey Ferguson MF 240 (50 HP)
● New Holland TT55 (55 HP)
● Massey Ferguson MF 260 (60 HP)
Applications of the Fieldking FKAT2WT-E-5 Trailer
The 5-ton agricultural trailer is a must-have piece of equipment for small- to medium-sized Tanzanian farmers. It is made with high-grade materials to help farmers simplify time-consuming tasks, such as unloading, through its hydraulic performance. Some key applications include:
● Transportation of farm produce up to 5 tons across all land types with a tipping mechanism.
● Used in farmlands for transporting agricultural produce like maize, hay bales, silage, and fruits.
● Transporting heavy farm inputs like water tanks, manure, and animal feeds.
● Carrying bulk soil, rocks, and trees from construction projects or clearing farmlands for expansion.
Read Also: Fieldking FKAT4WNT-E-9T Trailer for Sale Tanzania
Benefits of Choosing the Fieldking FKAT2WT-E-5 Trailer
Farmers can reap many benefits from investing in the Fieldking tractor-trailer attachment for daily farm activities. Its tipping feature simplifies loading and unloading farm produce, reducing farm operation costs. Here are some key benefits:
● They reduce manual labor and turnaround time by allowing farmers to unload farm inputs in seconds.
● They can be easily mounted to tractors with power between 50 and 70 HP for easy transportation.
● They are highly versatile in handling year-round farm activities and inputs from seeds, manure, fertilizer, hay, and harvested crops.
● The large loading capacity of up to 5 tons makes it ideal for small-scale farmers to transport more crops in fewer trips to save on fuel.
● The robust design with the two-wheel configuration makes transport easier for farmers even in the most challenging terrain.
Fieldking FKAT2WT-E-5 Trailer vs Standard Farm Trailer
The Fieldking agricultural trailer stands out for its hydraulic tipping, heavy-duty axle, and reinforced chassis. These features make it better suited for frequent, heavy-duty farm transport. However, this is how it compares to the standard farm trailer:
Feature | Fieldking FKAT2WT-E-5 Trailer | Standard Farm Trailer |
Load capacity | 5 tonnes | Typically 2–4 tonnes |
Trailer type | Hydraulic tipping trailer | Usually, non-tipping or manual tipping |
Recommended tractor power | 50–70 HP | 35–60 HP |
Chassis | Heavy-duty 150 × 75 mm chassis | Lighter fabricated chassis |
Floor | 4 mm steel floor | Usually 2–3 mm steel floor |
Side walls | Corrugated steel for added strength | Plain steel sheets are common |

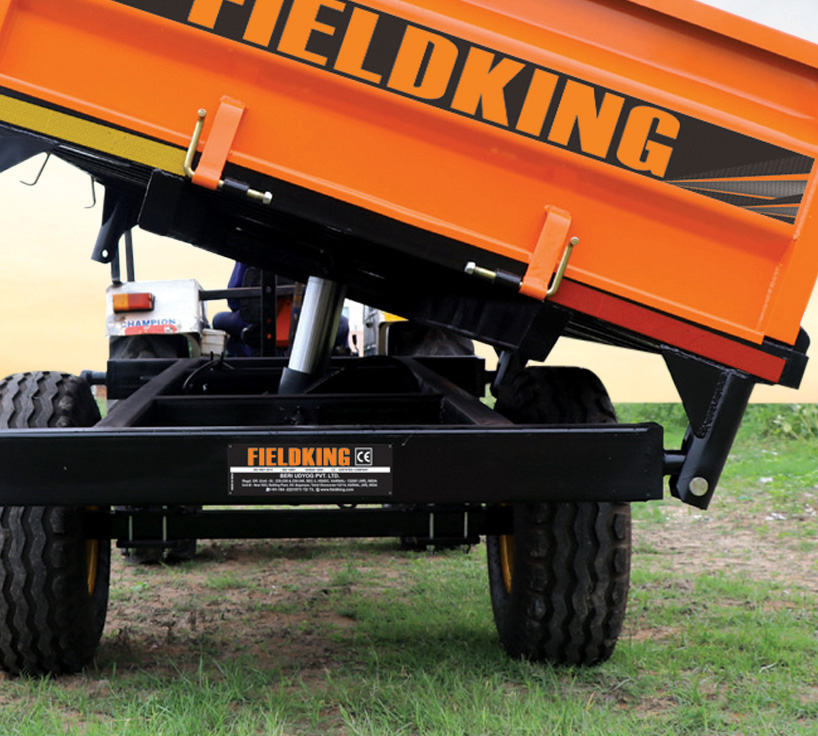

Hydraulic system | Telescopic hydraulic cylinder for quick unloading | Often lacks hydraulic tipping or uses a basic system |
Axle | 75 mm heavy-duty square axle | Smaller axle, depending on the manufacturer |
Tyres | Heavy-duty agricultural tyres (multiple size options) | Standard agricultural or road tyres |
Stability | Low centre of gravity for safer transport | Dependent on the manufacturer |
Durability | Heavy-duty hubs, bearings, and a reinforced frame | Depends on build quality; generally less robust |
Maintenance | Quality components designed for long service life | Maintenance needs vary widely |
Best suited for | Commercial farming, contractors, and high-volume haulage | Light to medium farm transport |
Read also: Post-harvest machinery in Tanzania: Complete guide to efficient crop processing.
How to Maintain the Fieldking FKAT2WT-E-5 Trailer
The heavy-duty farm trailer needs regular maintenance to maintain peak performance. Here are expert tips to keep your trailer in tip-top shape:
● Regularly inspect the hydraulic system to ensure the liquid is topped up and clean.
● Grease components such as hinges and pivots to reduce occasional wear and tear.
● Regularly change filters and breathers of the hydraulic system to prevent the accumulation of contaminants. This ensures smooth and efficient operation.
● Only load up to a maximum of 5 tons to reduce strain on the chassis and hydraulics.
● Keep a distance while the hydraulic system is in motion. This is to avoid any unnecessary accidents.
Why Buy the Fieldking FKAT2WT-E-5 Trailer from Agricom?
Agricom is a one-stop shop for Tanzanian farmers looking to invest in the hydraulic tipping trailer. Why do most farmers trust Agricom as the best trailer dealer across the country?
● We offer warranties for all Fieldking equipment
● We have multiple branches spread across the country for easy access to our shops
● You can find a wide range of farm products and equipment, including tractors, power tillers, combine harvesters, and more
● We offer flexible bank finance options through our partners Stanbic and PASS.
● Our active online store makes it easier to access all our products from the comfort of your home
● We offer free servicing with our technical team as part of our after-sales services.
Visit our Agricom online store and shop from the comfort of your home.
FAQs on Fieldking FKAT2WT-E-5 trailer
What is the price of the Fieldking harvester 100 hp?
The prices of the Fieldking harvester 100 hp vary. Check our online store to find the recent pricing.
Which tractor is best for a trolley?
A 50-70 HP tractor is the ideal match for the Fieldking FKAT2WT-E-5 trailer for Tanzanian farmers.
What is the cost of a tractor?
Tractor prices in Tanzania depend on the brand, horsepower, and features. Contact Agricom for current pricing and bank financing options.
How many tons are in a tractor trolley?
Farm tractor-trailers are available in various capacities. It typically ranges from 2 to 10 tons. The Fieldking FKAT2WT-E-5 has a loading capacity of 5 tons.
Conclusion
The durability and reliability of the Fieldking FKAT2WT-E-5 trailer make it an ideal trailer for Tanzanian farmers. Its hydraulic tipping mechanism means less time unloading farm inputs. The heavy-duty build can handle the rough terrain of most farmlands with peak performance. Find the trailer here at Agricom with affordable rates.
